Geometry Validation and Quality Checking in Parametric CAD

A parametric CAD model might look perfect on screen, but that visual representation hides potential problems that only surface during manufacturing. Your 3D printer fails mid-print because the model has invisible gaps. Your CNC machine crashes because surfaces self-intersect. Your assembly simulation reports impossible collisions because components have invalid topology.

These failures share a common cause: geometry that is visually correct but topologically broken. The fix is not better visualization - it is systematic validation that catches problems before they escape the design phase.

This article explores geometry validation in parametric CAD systems using CadQuery and Open CASCADE. You will learn to detect common issues like non-manifold edges and open shells, implement validation pipelines that run automatically during export, and apply repair strategies when validation fails.

Why geometry validation matters

CAD geometry exists as mathematical representations - NURBS surfaces, B-Rep solids, and topological structures that define how faces, edges, and vertices connect. Manufacturing processes interpret these representations literally. When the math is inconsistent, manufacturing fails.

Consider the three main use cases:

3D Printing (FDM/SLA) requires watertight meshes. The slicer generates toolpaths by computing where horizontal planes intersect your model. Open shells, inverted normals, or self-intersecting surfaces create ambiguous intersection calculations. The result: missing layers, infinite loops, or complete slicer failures.

CNC Machining relies on consistent surface normals to determine material removal direction. Non-manifold edges (where more than two faces share an edge) create undefined machining directions. The toolpath generator cannot determine which side is material and which is void.

Assembly Simulation performs collision detection and constraint solving. Invalid topology causes interference calculations to report false positives or miss actual collisions entirely. Your carefully designed snap-fit fails because the simulation cannot correctly determine surface boundaries.

Common geometry issues

Understanding what can go wrong helps you design validation checks that catch real problems. The most common issues fall into three categories.

Common geometry problems: non-manifold edges, open shells, and self-intersecting surfaces with highlighted problem areas

Non-manifold geometry

A manifold solid has a simple property: every edge belongs to exactly two faces. Non-manifold edges violate this rule. They occur when:

Three or more faces share a single edge (a “T-junction”)
An edge has only one face (a dangling edge)
Faces share a single vertex but no edge

import cadquery as cq

# This creates a non-manifold edge where the boxes touch
box1 = cq.Workplane("XY").box(10, 10, 10)
box2 = cq.Workplane("XY").center(5, 0, 0).box(10, 10, 10)

# Union should fix it, but sometimes creates T-junctions instead
result = box1.union(box2)

Non-manifold geometry often results from boolean operations between shapes that share faces or edges at exactly coincident positions. The CAD kernel cannot determine the intended topology at those boundaries.

Self-intersecting surfaces

Self-intersection occurs when a surface crosses through itself. This creates ambiguous inside/outside regions that manufacturing processes cannot interpret. Common causes include:

Sweeping a profile along a path with too-tight curves
Lofting between profiles with incompatible topology
Offset operations that invert in tight corners

import cadquery as cq

# A sharp offset on a small radius creates self-intersection
profile = cq.Workplane("XY").circle(5)
# Offsetting inward by more than the radius inverts the geometry
dangerous = profile.offset2D(-6)  # Likely to self-intersect

Open shells

A closed solid completely encloses its interior volume. Open shells have gaps - missing faces that create holes in the boundary. Slicers cannot determine inside from outside because the boundary is incomplete.

import cadquery as cq

# Building a box face-by-face risks leaving gaps
faces = []
faces.append(cq.Workplane("XY").rect(10, 10))  # Bottom
faces.append(cq.Workplane("XZ").rect(10, 10))  # Front
# Forgot the other faces - this is an open shell

Implementing validation checks

Validation should run automatically and report issues with enough detail to guide repairs. The following implementation uses a structured approach with severity levels and detailed diagnostics.

from dataclasses import dataclass, field
from enum import Enum
from typing import Any
import cadquery as cq

class IssueSeverity(Enum):
    """Severity level for validation issues."""
    ERROR = "error"      # Geometry likely will not work
    WARNING = "warning"  # Potential issues
    INFO = "info"        # Informational only

@dataclass
class ValidationIssue:
    """A single validation issue found during geometry checks."""
    severity: IssueSeverity
    code: str
    message: str
    details: dict[str, Any] = field(default_factory=dict)

@dataclass
class ValidationResult:
    """Result of validating a component's geometry."""
    component_name: str
    is_valid: bool
    issues: list[ValidationIssue] = field(default_factory=list)
    bbox_size: tuple[float, float, float] | None = None
    solid_count: int = 0
    face_count: int = 0

    @property
    def has_errors(self) -> bool:
        return any(i.severity == IssueSeverity.ERROR for i in self.issues)

    @property
    def has_warnings(self) -> bool:
        return any(i.severity == IssueSeverity.WARNING for i in self.issues)

The ValidationResult class captures both pass/fail status and detailed metrics. Separating ERROR, WARNING, and INFO levels allows pipelines to fail on critical issues while still reporting less severe concerns.

Core validation function

The main validation function performs multiple checks and aggregates results:

MAX_DIMENSION = 2000.0  # Maximum reasonable dimension in mm
MIN_DIMENSION = 0.01    # Minimum reasonable dimension in mm

def validate_geometry(
    geometry: cq.Workplane,
    name: str = "component",
    max_dimension: float = MAX_DIMENSION,
    min_dimension: float = MIN_DIMENSION,
) -> ValidationResult:
    """Validate CadQuery geometry for manufacturing readiness."""
    issues: list[ValidationIssue] = []
    bbox_size = None
    solid_count = 0
    face_count = 0

    # Check 1: Geometry contains shapes
    try:
        vals = geometry.vals()
        if not vals:
            issues.append(ValidationIssue(
                severity=IssueSeverity.ERROR,
                code="EMPTY_GEOMETRY",
                message="Geometry contains no shapes",
            ))
            return ValidationResult(
                component_name=name,
                is_valid=False,
                issues=issues,
            )
        shape = geometry.val()
    except Exception as e:
        issues.append(ValidationIssue(
            severity=IssueSeverity.ERROR,
            code="GEOMETRY_ACCESS_FAILED",
            message=f"Failed to access geometry: {e}",
        ))
        return ValidationResult(component_name=name, is_valid=False, issues=issues)

    # Check 2: Solid body count
    try:
        solids = shape.Solids()
        solid_count = len(solids)
        if solid_count == 0:
            issues.append(ValidationIssue(
                severity=IssueSeverity.ERROR,
                code="NO_SOLIDS",
                message="Geometry has no solid bodies",
            ))
    except Exception:
        pass  # Some shapes may not support Solids()

    # Check 3: Face count
    try:
        faces = shape.Faces()
        face_count = len(faces)
        if face_count == 0 and solid_count > 0:
            issues.append(ValidationIssue(
                severity=IssueSeverity.WARNING,
                code="NO_FACES",
                message="Solid has no faces",
            ))
    except Exception:
        pass

    # Check 4: Bounding box sanity
    try:
        bbox = shape.BoundingBox()
        bbox_size = (bbox.xlen, bbox.ylen, bbox.zlen)

        max_dim = max(bbox_size)
        if max_dim > max_dimension:
            issues.append(ValidationIssue(
                severity=IssueSeverity.WARNING,
                code="OVERSIZED",
                message=f"Dimension ({max_dim:.1f}mm) exceeds {max_dimension}mm",
                details={"max_dimension": max_dim},
            ))

        min_dim = min(bbox_size)
        if min_dim < min_dimension:
            issues.append(ValidationIssue(
                severity=IssueSeverity.WARNING,
                code="UNDERSIZED",
                message=f"Dimension ({min_dim:.4f}mm) below {min_dimension}mm",
                details={"min_dimension": min_dim},
            ))
    except Exception as e:
        issues.append(ValidationIssue(
            severity=IssueSeverity.WARNING,
            code="BBOX_FAILED",
            message=f"Could not compute bounding box: {e}",
        ))

    is_valid = not any(i.severity == IssueSeverity.ERROR for i in issues)
    return ValidationResult(
        component_name=name,
        is_valid=is_valid,
        issues=issues,
        bbox_size=bbox_size,
        solid_count=solid_count,
        face_count=face_count,
    )

This implementation checks for empty geometry, missing solids, and unreasonable dimensions. Each check is wrapped in try/except to ensure one failing check does not prevent subsequent checks from running.

Using BRepCheck from Open CASCADE

For deeper topology validation, CadQuery’s underlying Open CASCADE kernel provides BRepCheck_Analyzer. This tool detects issues that geometric checks miss: invalid edge curves, self-intersecting faces, and topology inconsistencies.

def validate_with_occ(geometry: cq.Workplane, name: str = "component") -> ValidationResult:
    """Deep validation using Open CASCADE BRepCheck_Analyzer."""
    issues: list[ValidationIssue] = []

    try:
        shape = geometry.val()
        occ_shape = shape.wrapped  # Get underlying OCC TopoDS_Shape

        from OCC.Core.BRepCheck import BRepCheck_Analyzer

        analyzer = BRepCheck_Analyzer(occ_shape)

        if not analyzer.IsValid():
            issues.append(ValidationIssue(
                severity=IssueSeverity.ERROR,
                code="INVALID_SHAPE",
                message="OCC reports shape is invalid (possible self-intersections)",
            ))

    except ImportError:
        issues.append(ValidationIssue(
            severity=IssueSeverity.INFO,
            code="OCC_NOT_AVAILABLE",
            message="OCC.Core not available for direct import",
        ))
    except Exception as e:
        issues.append(ValidationIssue(
            severity=IssueSeverity.WARNING,
            code="OCC_CHECK_FAILED",
            message=f"OCC validity check failed: {e}",
        ))

    is_valid = not any(i.severity == IssueSeverity.ERROR for i in issues)
    return ValidationResult(component_name=name, is_valid=is_valid, issues=issues)

Note: Direct OCC imports require the pythonocc-core package. CadQuery bundles OCC but does not always expose the BRepCheck module directly. Check your environment if imports fail.

For more detailed diagnostics, you can query the analyzer for specific issues:

from OCC.Core.BRepCheck import BRepCheck_Analyzer, BRepCheck_Status
from OCC.Core.TopAbs import TopAbs_FACE, TopAbs_EDGE

def get_detailed_issues(occ_shape) -> list[str]:
    """Extract detailed issue descriptions from BRepCheck."""
    analyzer = BRepCheck_Analyzer(occ_shape)
    issues = []

    if not analyzer.IsValid():
        # Check individual faces
        result = analyzer.Result(occ_shape)
        if result:
            status_list = result.Status()
            for status in status_list:
                if status != BRepCheck_Status.BRepCheck_NoError:
                    issues.append(f"Shape issue: {status.name}")

    return issues

Volume and closure checks

Beyond topology, physical properties provide additional validation signals:

def check_physical_properties(geometry: cq.Workplane) -> list[ValidationIssue]:
    """Validate physical properties like volume and closure."""
    issues = []
    shape = geometry.val()

    # Volume check - closed solids have positive volume
    try:
        from OCC.Core.GProp import GProp_GProps
        from OCC.Core.BRepGProp import brepgprop_VolumeProperties

        props = GProp_GProps()
        brepgprop_VolumeProperties(shape.wrapped, props)
        volume = props.Mass()

        if volume <= 0:
            issues.append(ValidationIssue(
                severity=IssueSeverity.ERROR,
                code="ZERO_VOLUME",
                message="Solid has zero or negative volume (likely not closed)",
                details={"volume": volume},
            ))
        elif volume < 0.001:  # Less than 1 cubic mm
            issues.append(ValidationIssue(
                severity=IssueSeverity.WARNING,
                code="TINY_VOLUME",
                message=f"Volume ({volume:.6f} mm^3) is extremely small",
                details={"volume": volume},
            ))
    except Exception as e:
        issues.append(ValidationIssue(
            severity=IssueSeverity.WARNING,
            code="VOLUME_CHECK_FAILED",
            message=f"Could not compute volume: {e}",
        ))

    return issues

A solid with zero or negative volume almost certainly has topology problems. This check catches open shells and inverted surfaces that other checks might miss.

Repair strategies

When validation fails, you have several repair options depending on the issue type.

Healing operations

Open CASCADE provides ShapeFix classes for automatic repair:

from OCC.Core.ShapeFix import ShapeFix_Shape, ShapeFix_Solid

def attempt_repair(geometry: cq.Workplane) -> cq.Workplane:
    """Attempt to repair invalid geometry using OCC ShapeFix."""
    shape = geometry.val()
    occ_shape = shape.wrapped

    fixer = ShapeFix_Shape(occ_shape)
    fixer.Perform()
    fixed_shape = fixer.Shape()

    # Wrap back into CadQuery
    from cadquery.occ_impl.shapes import Shape
    return cq.Workplane(Shape(fixed_shape))

Warning: Automatic repair changes your geometry. Always validate the repaired result and visually inspect critical features. Repair operations may fill gaps incorrectly or alter dimensions.

Boolean cleanup

For non-manifold geometry from boolean operations, try re-running with fuzziness:

def robust_union(shape1: cq.Workplane, shape2: cq.Workplane) -> cq.Workplane:
    """Union with fuzzy tolerance to avoid non-manifold edges."""
    # Slight offset prevents exact-coincident faces
    tolerance = 0.001  # 1 micron
    return shape1.union(shape2, tol=tolerance)

Regeneration

Sometimes the best repair is regenerating the geometry with adjusted parameters:

def generate_with_validation(params: dict) -> cq.Workplane:
    """Generate geometry with automatic validation and retry."""
    max_attempts = 3

    for attempt in range(max_attempts):
        geometry = generate_part(**params)
        result = validate_geometry(geometry)

        if result.is_valid:
            return geometry

        # Adjust parameters for next attempt
        if "UNDERSIZED" in [i.code for i in result.issues]:
            params["min_thickness"] = params.get("min_thickness", 1.0) * 1.5

    raise ValueError(f"Could not generate valid geometry after {max_attempts} attempts")

Integration with export pipeline

Validation should be a mandatory step in your export process. Here is how to integrate it:

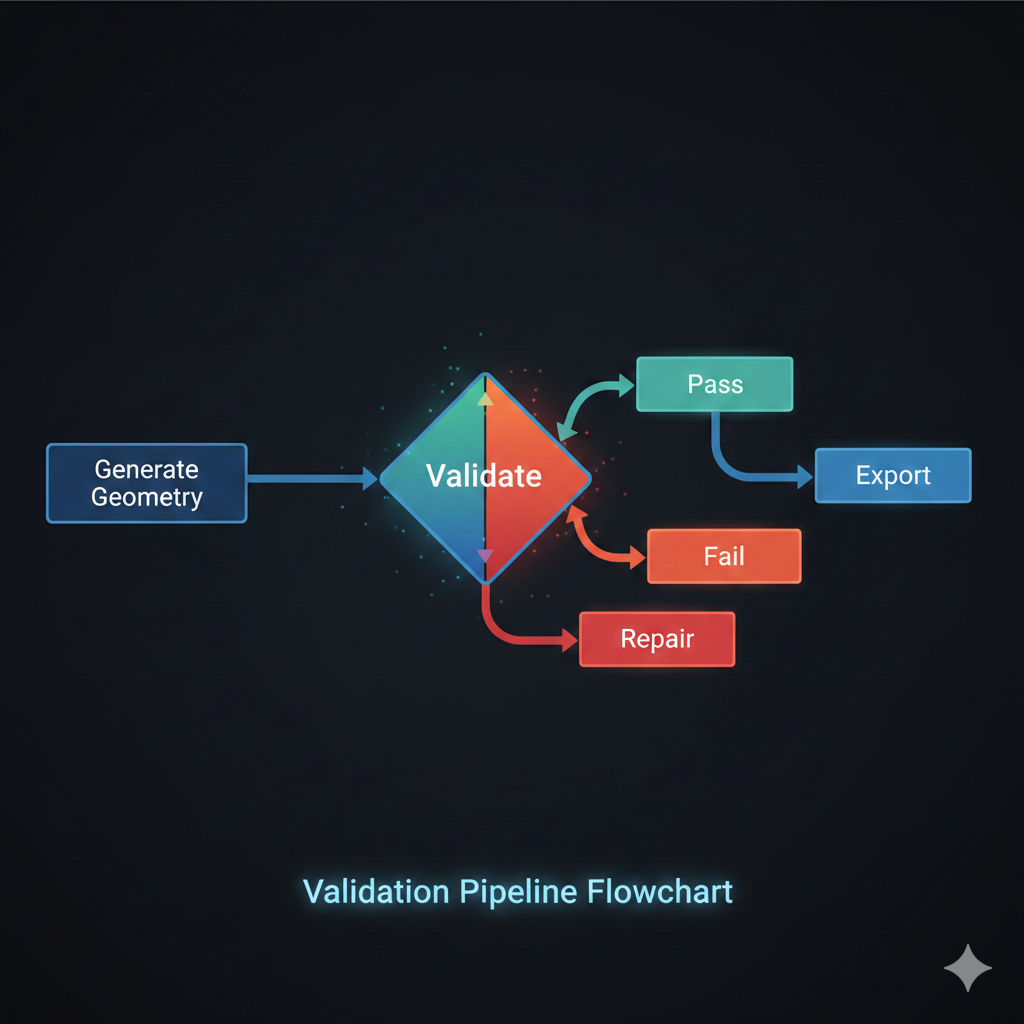

Validation pipeline flowchart: Generate Geometry to Validate to Export, with Pass/Warning/Fail branches and repair loop

from pathlib import Path

def export_with_validation(
    geometry: cq.Workplane,
    name: str,
    output_dir: Path,
    formats: list[str] = ["step", "stl"],
) -> dict[str, Path]:
    """Export geometry only if validation passes."""

    # Run validation
    result = validate_geometry(geometry, name)

    if result.has_errors:
        error_messages = [
            f"  [{i.code}] {i.message}"
            for i in result.issues
            if i.severity == IssueSeverity.ERROR
        ]
        raise ValueError(
            f"Validation failed for {name}:\n" + "\n".join(error_messages)
        )

    # Log warnings but continue
    if result.has_warnings:
        for issue in result.issues:
            if issue.severity == IssueSeverity.WARNING:
                print(f"Warning [{issue.code}]: {issue.message}")

    # Export to requested formats
    exported = {}
    output_dir.mkdir(parents=True, exist_ok=True)

    if "step" in formats:
        step_path = output_dir / f"{name}.step"
        cq.exporters.export(geometry, str(step_path))
        exported["step"] = step_path

    if "stl" in formats:
        stl_path = output_dir / f"{name}.stl"
        cq.exporters.export(geometry, str(stl_path))
        exported["stl"] = stl_path

    print(f"Exported {name}: {result.solid_count} solids, {result.face_count} faces")
    return exported

This pattern ensures that invalid geometry never reaches manufacturing. The validation gate catches problems during development when they are cheapest to fix.

Validation pipeline architecture

A complete validation pipeline processes components through multiple checks:

┌─────────────────┐     ┌─────────────────┐     ┌─────────────────┐
│    Generate     │────▶│    Validate     │────▶│     Export      │
│    Geometry     │     │    Geometry     │     │   STEP / STL    │
└─────────────────┘     └────────┬────────┘     └─────────────────┘
                                 │
                        ┌────────▼────────┐
                        │   Pass / Fail   │
                        └────────┬────────┘
                                 │
              ┌──────────────────┼──────────────────┐
              ▼                  ▼                  ▼
       ┌──────────┐       ┌──────────┐       ┌──────────┐
       │   Pass   │       │  Warning │       │   Fail   │
       │ Continue │       │   Log    │       │  Repair  │
       └──────────┘       └──────────┘       └────┬─────┘
                                                  │
                                           ┌──────▼──────┐
                                           │ Re-validate │
                                           └─────────────┘

Each component passes through validation before export. Failures trigger repair attempts, which then re-validate. This loop continues until validation passes or repair options are exhausted.

Key takeaways

Implementing geometry validation in parametric CAD systems yields several benefits:

Early detection catches topology issues during development, not during manufacturing when failures are expensive
Structured results with severity levels and error codes enable automated pipelines to make intelligent decisions
BRepCheck from Open CASCADE provides deep topology validation beyond simple geometric checks
Physical property checks like volume computation catch open shells that visual inspection misses
Repair strategies range from automatic healing to parameter adjustment and regeneration
Export integration ensures invalid geometry never reaches manufacturing tools

The investment in validation infrastructure pays off quickly. A single caught error that would have failed a 3D print or crashed a CNC machine justifies the implementation effort. More importantly, validation creates confidence that your parametric designs will actually work in the physical world.
