Creating Electronics Component Adapters with cq_electronics

When designing electronic enclosures, you need accurate 3D models of the components that will fit inside. PCB dimensions, mounting hole locations, connector heights, and clearance requirements all drive the enclosure geometry. Manually modeling a Raspberry Pi or DIN rail clip every time wastes hours that could be spent on the actual design work.

The cq_electronics library provides ready-to-use parametric models of common electronic components built on CadQuery. However, integrating these models into a larger CAD system requires an adapter layer that normalizes the library’s API, preserves assembly structures with colors, and exposes component metadata like dimensions and mounting holes.

This article demonstrates how to build an ElectronicsSource adapter that wraps cq_electronics components, making them accessible through a unified registry interface. You will learn how to handle Assembly-to-Workplane conversion, extract metadata from component classes, and preserve color information for STEP exports.

Understanding cq_electronics components

The cq_electronics library organizes components into categories: boards (Raspberry Pi), connectors (pin headers, RJ45 jacks), SMD packages (BGA chips), and mechanical parts (DIN rail, mounting clips). Each component is a Python class that generates CadQuery geometry when instantiated.

from cq_electronics.rpi.rpi3b import RPi3b
from cq_electronics.connectors.headers import PinHeader
from cq_electronics.mechanical.din_rail import TopHat

# Raspberry Pi 3B - returns Assembly with colored sub-parts
rpi = RPi3b(simple=True)
rpi_geometry = rpi.cq_object  # cq.Assembly

# Pin header - 2x20 GPIO header
gpio = PinHeader(rows=2, columns=20, above=8.5, below=3, simple=True)
gpio_geometry = gpio.cq_object  # cq.Workplane

# DIN rail section - 150mm length
rail = TopHat(length=150, depth=7.5, slots=True)
rail_geometry = rail.cq_object  # cq.Workplane

The challenge is that components return different types. The Raspberry Pi returns a cq.Assembly with individually colored parts (PCB substrate, Ethernet port, USB ports). Simpler components like pin headers return a cq.Workplane. An adapter needs to normalize these differences while preserving the rich assembly data when available.

Available components in the catalog

The adapter exposes a curated selection of cq_electronics components organized by category:

Name	Category	Required Params	Description
`RPi3b`	board	-	Raspberry Pi 3B single-board computer
`PinHeader`	connector	-	Through-hole pin header
`JackSurfaceMount`	connector	-	RJ45 Ethernet jack (surface mount)
`BGA`	smd	`length`, `width`	Ball Grid Array chip package
`DinClip`	mechanical	-	DIN rail mounting clip
`TopHat`	mechanical	`length`	Top-hat (TH35) DIN rail section
`PiTrayClip`	mounting	-	Raspberry Pi mounting tray clip

Each component has a parameter schema that defines valid inputs. For example, BGA requires both length and width since these vary by chip package. The TopHat DIN rail requires a length parameter but defaults to standard depth (7.5mm) and includes mounting slots.

Note: The simple=True parameter available on most components generates simplified geometry optimized for performance. Set simple=False when you need full detail for renders or interference checks.

The adapter pattern architecture

The ElectronicsSource class implements the ComponentSource interface, translating between the unified registry API and cq_electronics internals:

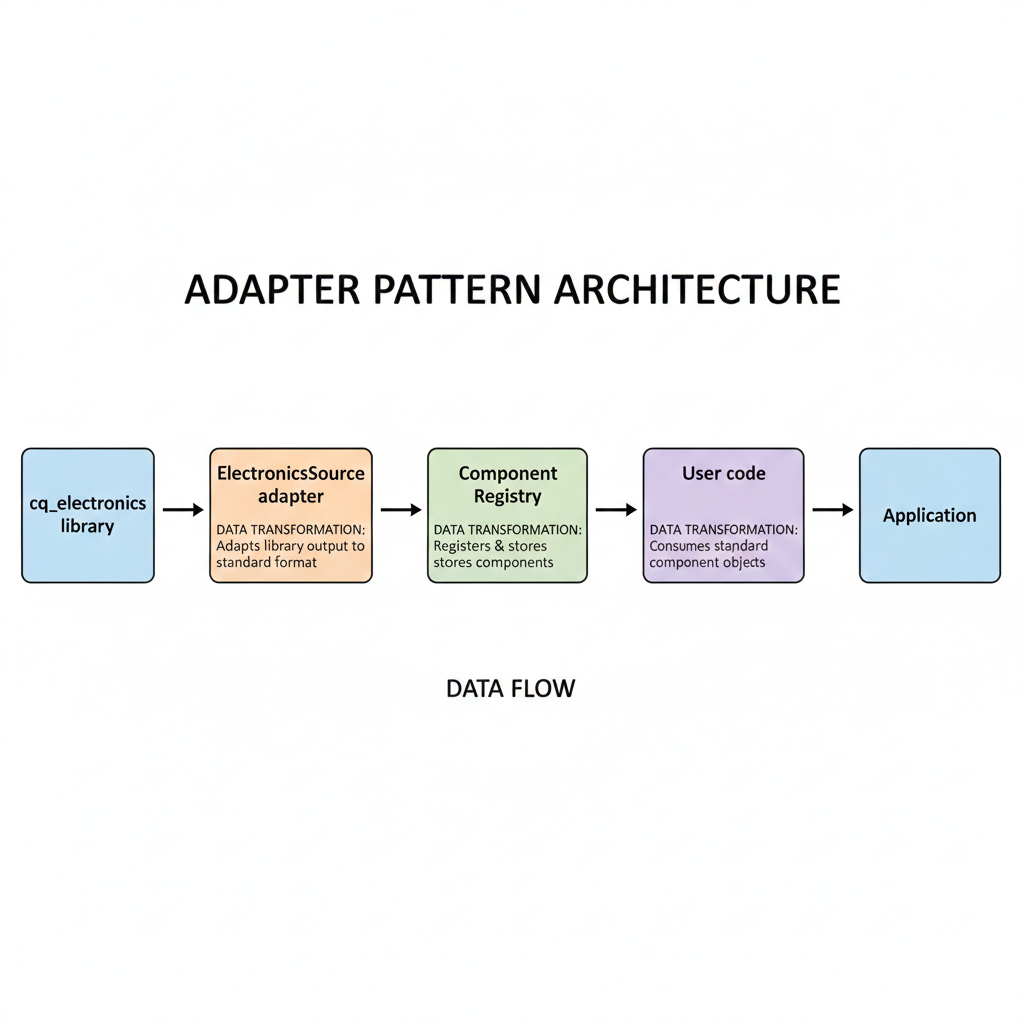

Adapter pattern architecture showing cq_electronics library integration through ElectronicsSource

┌─────────────────────────────────────────────────────────────┐
│                     Application Code                         │
│              registry.get("RPi3b", simple=True)             │
└─────────────────────────────┬───────────────────────────────┘
                              │
┌─────────────────────────────▼───────────────────────────────┐
│                    ComponentRegistry                         │
│    - Caching  - Source aggregation  - Unified get() API     │
└─────────────────────────────┬───────────────────────────────┘
                              │
┌─────────────────────────────▼───────────────────────────────┐
│                    ElectronicsSource                         │
│    - Parameter validation    - Metadata extraction          │
│    - Assembly preservation   - Type normalization           │
└─────────────────────────────┬───────────────────────────────┘
                              │
┌─────────────────────────────▼───────────────────────────────┐
│                      cq_electronics                          │
│    RPi3b  PinHeader  BGA  TopHat  DinClip  PiTrayClip      │
└─────────────────────────────────────────────────────────────┘

The component catalog maps short names to their import paths and parameter schemas:

COMPONENT_CATALOG: dict[str, tuple[str, str, str, str, list[str], dict[str, Any]]] = {
    # (module_path, class_name, category, description, required_params, default_params)
    "RPi3b": (
        "cq_electronics.rpi.rpi3b",
        "RPi3b",
        "board",
        "Raspberry Pi 3B single-board computer",
        [],
        {"simple": True},
    ),
    "PinHeader": (
        "cq_electronics.connectors.headers",
        "PinHeader",
        "connector",
        "Through-hole pin header",
        [],
        {"rows": 1, "columns": 1, "above": 7, "below": 3, "simple": True},
    ),
    "BGA": (
        "cq_electronics.smd.bga",
        "BGA",
        "smd",
        "Ball Grid Array chip package",
        ["length", "width"],
        {"height": 1, "simple": True},
    ),
    "TopHat": (
        "cq_electronics.mechanical.din_rail",
        "TopHat",
        "mechanical",
        "Top-hat (TH35) DIN rail section",
        ["length"],
        {"depth": 7.5, "slots": True},
    ),
}

This declarative catalog makes adding new components straightforward - just add a tuple with the import path, class name, category, and parameter information.

Parameter validation and error handling

The adapter validates parameters before passing them to cq_electronics, providing clear error messages when inputs are invalid:

PARAM_SCHEMAS: dict[str, dict[str, dict[str, Any]]] = {
    "BGA": {
        "length": {"type": (int, float), "min": 0.1, "required": True},
        "width": {"type": (int, float), "min": 0.1, "required": True},
        "height": {"type": (int, float), "min": 0.1},
        "simple": {"type": bool},
    },
    "PinHeader": {
        "rows": {"type": int, "min": 1, "max": 100},
        "columns": {"type": int, "min": 1, "max": 100},
        "above": {"type": (int, float), "min": 0},
        "below": {"type": (int, float), "min": 0},
        "simple": {"type": bool},
    },
}

def validate_params(component_name: str, params: dict[str, Any], strict: bool = True) -> dict[str, Any]:
    """Validate parameters and return filtered params."""
    schema = PARAM_SCHEMAS.get(component_name, {})
    validated_params = {}
    errors = []

    # Check for unknown parameters
    known_params = set(schema.keys())
    provided_params = set(params.keys())
    unknown_params = provided_params - known_params

    if unknown_params and strict:
        errors.append(
            f"Unknown parameter(s) for {component_name}: {sorted(unknown_params)}. "
            f"Valid parameters: {sorted(known_params) if known_params else 'none'}"
        )

    # Validate each parameter against its schema
    for param_name, value in params.items():
        if param_name in unknown_params:
            continue

        param_schema = schema.get(param_name, {})
        expected_type = param_schema.get("type")
        min_val = param_schema.get("min")
        max_val = param_schema.get("max")

        # Type checking with support for multiple types
        if expected_type is not None:
            if isinstance(expected_type, tuple):
                if not isinstance(value, expected_type):
                    type_names = " or ".join(t.__name__ for t in expected_type)
                    errors.append(f"Parameter '{param_name}' must be {type_names}")
                    continue
            elif not isinstance(value, expected_type):
                errors.append(f"Parameter '{param_name}' must be {expected_type.__name__}")
                continue

        # Range validation
        if isinstance(value, (int, float)) and not isinstance(value, bool):
            if min_val is not None and value < min_val:
                errors.append(f"Parameter '{param_name}' must be >= {min_val}, got {value}")
                continue

        validated_params[param_name] = value

    if errors:
        raise ParameterValidationError(
            f"Invalid parameters for {component_name}:\n  - " + "\n  - ".join(errors)
        )

    return validated_params

This validation catches common errors early with helpful messages:

# Missing required parameter
registry.get("BGA", width=10)
# ValueError: Missing required parameters for BGA: ['length']. Required: [length: int or float, width: int or float]

# Unknown parameter
registry.get("TopHat", length=100, simple=True)
# ParameterValidationError: Unknown parameter(s) for TopHat: ['simple']. Valid parameters: ['depth', 'length', 'slots']

# Out of range
registry.get("PinHeader", rows=0)
# ParameterValidationError: Parameter 'rows' must be >= 1, got 0

Pro Tip: Pass strict=False to silently filter unknown parameters instead of raising errors. This is useful when migrating code between library versions.

Exposing component metadata

Electronic components carry valuable metadata beyond geometry - dimensions for cutouts, mounting hole positions for standoffs, and class constants from the underlying library. The ElectronicsComponent class exposes this through dedicated properties:

Component metadata visualization showing dimensions and mounting holes overlaid on Raspberry Pi model

class ElectronicsComponent(Component):
    """Component backed by cq_electronics library."""

    @property
    def metadata(self) -> dict[str, Any]:
        """Extract UPPER_CASE class constants."""
        instance = self._ensure_instance()
        metadata = {}
        for name in dir(instance):
            if name.isupper() and not name.startswith("_"):
                try:
                    value = getattr(instance, name)
                    if isinstance(value, (int, float, str, bool)):
                        metadata[name] = value
                except Exception:
                    pass
        return metadata

    @property
    def mounting_holes(self) -> list[tuple[float, float]] | None:
        """Get mounting hole locations as [(x, y), ...]."""
        instance = self._ensure_instance()
        if hasattr(instance, "hole_points"):
            return instance.hole_points
        return None

    @property
    def dimensions(self) -> tuple[float, float, float] | None:
        """Get (width, height, thickness) from metadata."""
        meta = self.metadata
        width = meta.get("WIDTH")
        height = meta.get("HEIGHT")
        depth = meta.get("THICKNESS") or meta.get("DEPTH")
        if width is not None and height is not None:
            return (float(width), float(height), float(depth) if depth else 0.0)
        return None

Using these properties makes enclosure design straightforward:

from semicad import get_registry

registry = get_registry()
rpi = registry.get("RPi3b")

# Get board dimensions for enclosure sizing
width, height, thickness = rpi.dimensions  # (85.0, 56.0, 1.5)

# Position mounting holes for standoffs
for x, y in rpi.mounting_holes:
    # Create M2.5 standoff at each hole position
    standoff = create_standoff(x, y, height=8)

# Access all class constants
print(rpi.metadata)
# {'WIDTH': 85, 'HEIGHT': 56, 'THICKNESS': 1.5, 'HOLE_DIAMETER': 2.7,
#  'HOLE_CENTERS_LONG': 49, 'HOLE_OFFSET_FROM_EDGE': 3.5, ...}

# Access underlying instance for advanced usage
rpi.raw_instance.hole_points  # Direct cq_electronics access

Preserving assembly structure and colors

The Raspberry Pi component returns a cq.Assembly with individually colored parts - the PCB substrate, Ethernet port, USB ports, and GPIO header each have distinct colors. Simply converting to a Workplane via toCompound() loses this information. The adapter preserves assembly metadata:

@dataclass
class PartInfo:
    """Information about a single part within an assembly."""
    name: str
    color: tuple[float, float, float, float] | None = None  # RGBA 0-1

@dataclass
class AssemblyInfo:
    """Metadata about an assembly structure."""
    parts: list[PartInfo] = field(default_factory=list)

    @classmethod
    def from_assembly(cls, asm: cq.Assembly) -> "AssemblyInfo":
        """Extract metadata from a CadQuery Assembly."""
        parts = []
        for name, _ in asm.traverse():
            color_tuple = None
            for child in asm.children:
                if child.name == name and child.color is not None:
                    color_tuple = child.color.toTuple()
                    break
            parts.append(PartInfo(name=name, color=color_tuple))
        return cls(parts=parts)

class ElectronicsComponent(Component):
    def build(self) -> cq.Workplane:
        """Build geometry, preserving assembly metadata."""
        instance = self._ensure_instance()
        cq_obj = instance.cq_object

        if isinstance(cq_obj, cq.Assembly):
            # Preserve original assembly and extract metadata
            self._assembly = cq_obj
            self._assembly_info = AssemblyInfo.from_assembly(cq_obj)
            compound = cq_obj.toCompound()
            return cq.Workplane("XY").add(compound)
        elif isinstance(cq_obj, cq.Workplane):
            return cq_obj
        else:
            return cq.Workplane("XY").add(cq_obj)

The preserved assembly data is accessible through component properties:

rpi = registry.get("RPi3b")

# Check if component has assembly structure
if rpi.has_assembly:
    # List all sub-parts
    print(rpi.list_parts())
    # ['rpi__pcb_substrate', 'rpi__ethernet_port', 'rpi__usb_ports', ...]

    # Get color mapping for rendering
    colors = rpi.get_color_map()
    # {'rpi__pcb_substrate': (0.85, 0.75, 0.55, 1.0), ...}

    # Extract specific sub-part geometry
    ethernet = rpi.get_part("rpi__ethernet_port")
    usb = rpi.get_part("rpi__usb_ports")

    # Export with colors preserved (STEP format)
    rpi.assembly.save("raspberry_pi_colored.step")

# The geometry property returns normalized Workplane for positioning
rpi_geometry = rpi.geometry  # Always cq.Workplane

This dual-track approach gives you the best of both worlds: normalized Workplane for assembly positioning and transformations, plus the original Assembly for colored exports and sub-part access.

Practical enclosure design example

Bringing everything together, here is how you would design an enclosure for a Raspberry Pi with DIN rail mounting:

from semicad import get_registry
import cadquery as cq

registry = get_registry()

# Get the Raspberry Pi with metadata
rpi = registry.get("RPi3b")
rpi_width, rpi_height, rpi_thickness = rpi.dimensions

# Get DIN rail clip for industrial mounting
din_clip = registry.get("DinClip")

# Create GPIO header for cable clearance
gpio = registry.get("PinHeader", rows=2, columns=20, above=8.5)

# Enclosure parameters
wall_thickness = 2.5
clearance = 1.0
standoff_height = 8.0

# Calculate enclosure dimensions from component metadata
enclosure_width = rpi_width + 2 * (wall_thickness + clearance)
enclosure_height = rpi_height + 2 * (wall_thickness + clearance)
enclosure_depth = standoff_height + rpi_thickness + 15  # GPIO clearance

# Create enclosure shell
enclosure = (
    cq.Workplane("XY")
    .box(enclosure_width, enclosure_height, enclosure_depth)
    .faces(">Z")
    .shell(-wall_thickness)
)

# Add mounting standoffs at exact hole positions
for x, y in rpi.mounting_holes:
    enclosure = (
        enclosure
        .faces("<Z")
        .workplane()
        .moveTo(x, y)
        .circle(4.0)  # Standoff outer diameter
        .extrude(standoff_height)
        .faces(">Z")
        .workplane()
        .moveTo(x, y)
        .hole(2.15)  # M2.5 tap hole
    )

# Position Raspberry Pi on standoffs
rpi_positioned = rpi.geometry.translate((0, 0, standoff_height + wall_thickness))

The metadata-driven approach means the enclosure automatically adjusts when you switch to a different board - just replace RPi3b with another board component, and the mounting holes and dimensions update accordingly.

Utility constants for hole sizing

The adapter also exposes standard hole sizes from cq_electronics for creating accurate mounting holes:

from semicad.sources.electronics import HOLE_SIZES, COLORS

# Metric hole diameters (mm)
HOLE_SIZES["M2R5_TAP_HOLE"]        # 2.15mm - M2.5 tap drill
HOLE_SIZES["M4_TAP_HOLE"]          # 3.2mm  - M4 tap drill
HOLE_SIZES["M4_CLEARANCE_NORMAL"]  # 4.5mm  - M4 through hole
HOLE_SIZES["M4_COUNTERSINK"]       # 9.4mm  - M4 countersink
HOLE_SIZES["M_COUNTERSINK_ANGLE"]  # 90 degrees

# Standard component colors (RGB 0-1)
COLORS["pcb_substrate_chiffon"]    # PCB base color
COLORS["solder_mask_green"]        # Green solder mask
COLORS["black_plastic"]            # Connector housings
COLORS["gold_plate"]               # Gold-plated contacts

These constants ensure your mounting holes match industry standards without memorizing drill sizes.

Key takeaways

Building an adapter for cq_electronics taught several valuable lessons about integrating third-party CAD libraries:

Normalize return types - Components may return Assembly or Workplane; the adapter should provide a consistent interface while preserving rich data when available
Validate parameters early - Clear error messages with valid options save debugging time when components fail to build
Extract metadata proactively - Dimensions, mounting holes, and class constants are often more valuable than geometry for design automation
Preserve assembly structure - Store the original Assembly and its metadata separately from the normalized Workplane to support both positioning and colored exports
Use declarative catalogs - A data-driven component catalog makes adding new components trivial and keeps import logic out of business code

The adapter pattern transforms cq_electronics from a standalone library into a first-class citizen of the parametric CAD ecosystem, accessible through the same unified interface as fasteners, custom components, and community models.
